Transfo ISOLANT Audio Stéréo
Description :

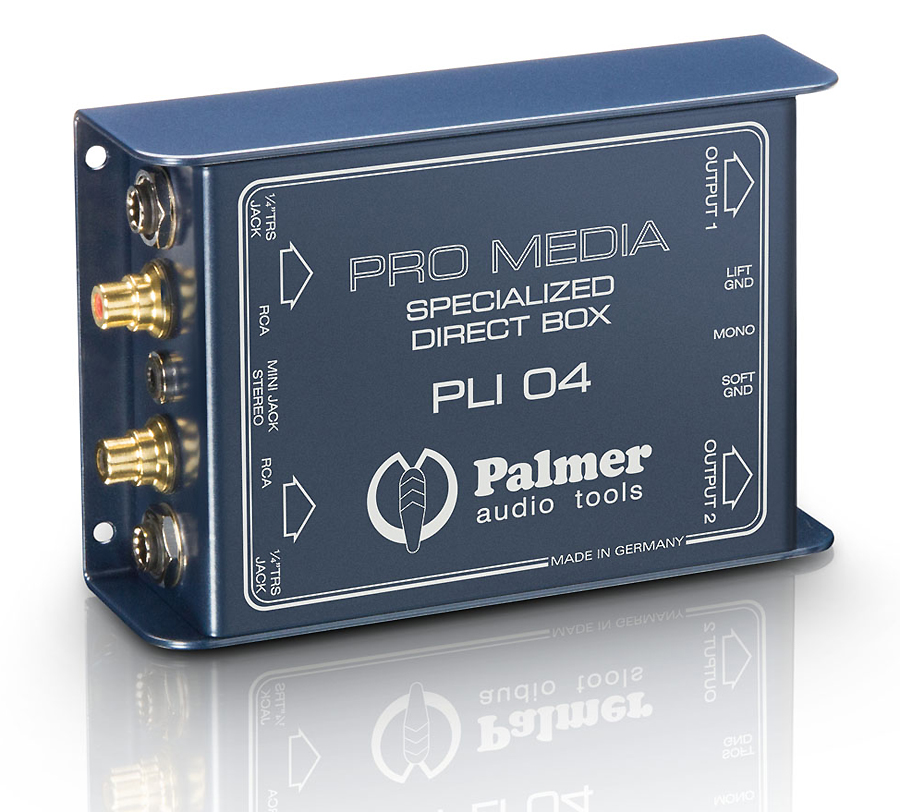

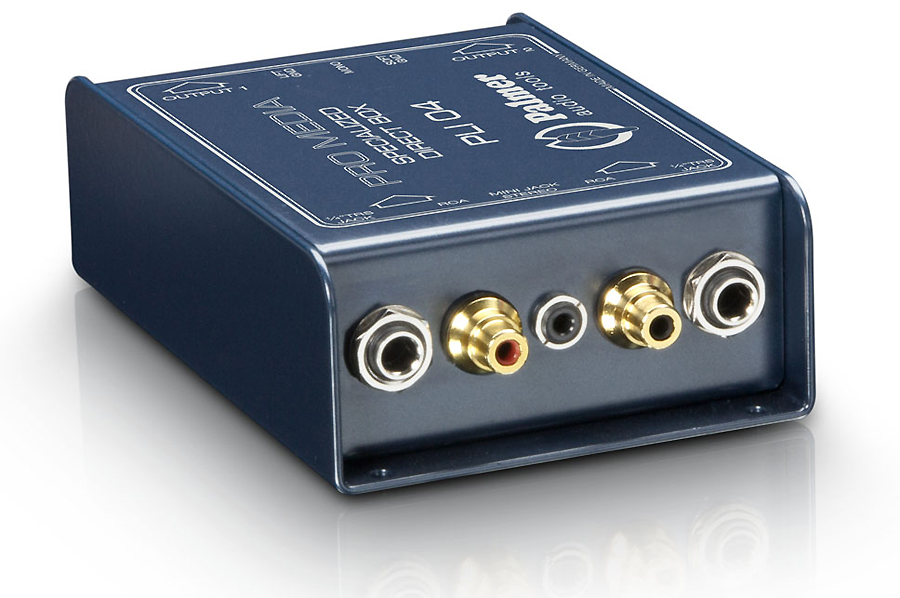

PRO MEDIA DI/ PLI-04. With the new PRO MEDIA DI/ PLI-04, Palmer introduces a DI-box, produced with the discerning needs of the computer-age media in mind. Using this uncomplicated method, personal computers and other consumer equipment with unbalanced outputs can be converted to balanced, in order to carry out, e.g., a presentation over a professional PA system. The PLI-04 accommodates all the common input types, TRS jacks accepting mono or stereo plugs, RCA phono sockets and a 3.5mm stereo jack input for use with the headphone output of a Laptop or similar device. The outputs are conventional transformer balanced XLR sockets, as used in professional PA systems, guaranteeing an electrically decoupled signal, a prerequisite to ensure noise-free operation. One other special feature which should not be forgotten! Although the PLI-04 is primarily a stereo unit, it can be switched to mono, with the two stereo signals summed and fed to both XLR outputs. The PLI-04 manifests a mechanically robust unit combined with outstanding technical specifications, adding to the list of high quality products that have come to be expected from Palmer.PLI04 Specifications:
Inputs:
2x 6.3mm TRS-Jack
Tip= +phase (hot)
Ring= -phase (cold)
Sleeve= screening
Ground
2x RCA phono sockets
1x 3.5mm stereo jack
Input Impedance: 6 kohms at 600 ohms
Load Input Level: 6dBu 30Hz/0.05%THD 16dBu 30Hz/0.33%THD (All measurements taken with 200 ohms source)
Outputs:
2x XLR male
Pin 1 ground
Pin 2 pos. phase (hot)
Pin 3 neg. phase (cold)
Transformer balanced
Output Impedance: 600 ohms
Gain reduction input to output: 10dB
Transformer ratio: 3.16 : 1
Frequency response: 20Hz - 20kHz ± 0.5dB
Phase response: less than 3°degree deviation
Mono switch 3 position ground lift switch: lift, ground, soft ground
Aluminium die cast housing: 125 x 95 x 35 mm
